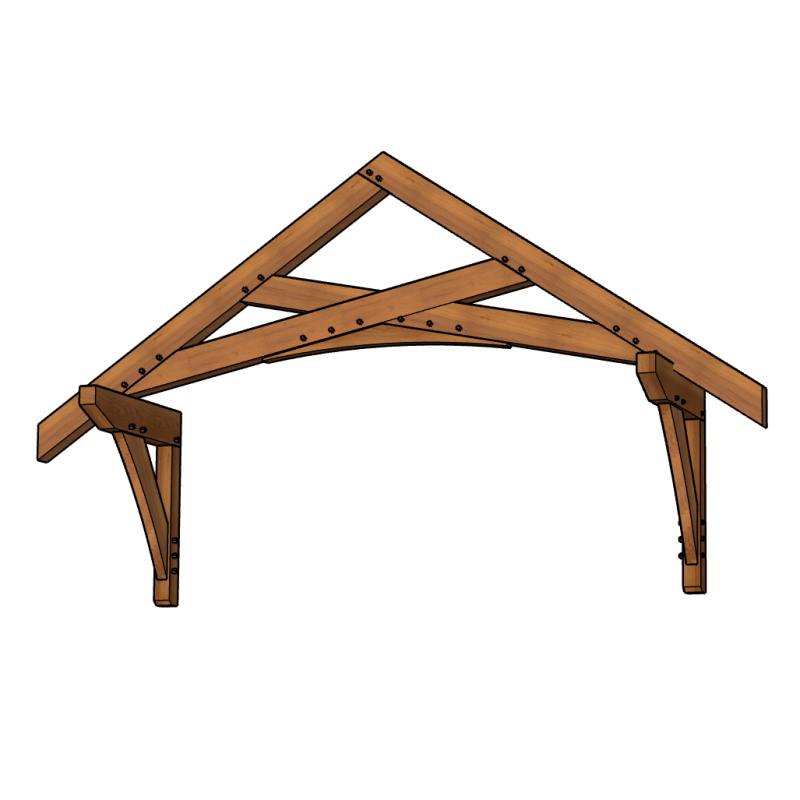

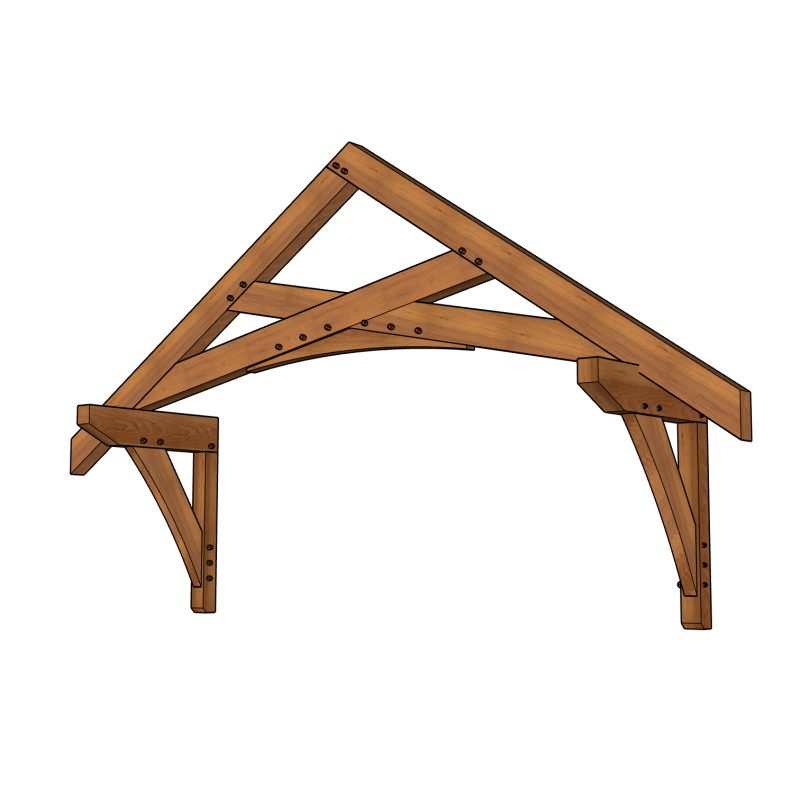

Gable Truss with Brackets
Price range: $6,132.00 through $8,604.00
Timber Frame Awning constructed from Spruce or Douglas Fir Timbers
This scissor truss design fits roof slopes 8 / 12, 10 / 12 and 12 / 12
- Projection: 54 inch
- Height: 11 foot 2 inch to 14 foot
- Width: 19 foot 7 inch
- Truss Members: 5 1/2 inch X 9 1/4 inch
- Truss to Wall: 30 inch
- Brace Thickness: 3 1/2 inch x 11 1/4 inch
- Brace Setting: 30 degrees, curved, housed, mortise and tenon joinery
- Wall Timber and Wall Posts: 5 1/2 in x 5 1/2 inch
- Lookouts: 5 1/2 X 11 1/4 inch
- Brace Radius: 105 inch
- Decor: Stop chamfer and heavy chamfer style face, 30 degree gun stock style brace, traditional pegged mortise and tenon joinery

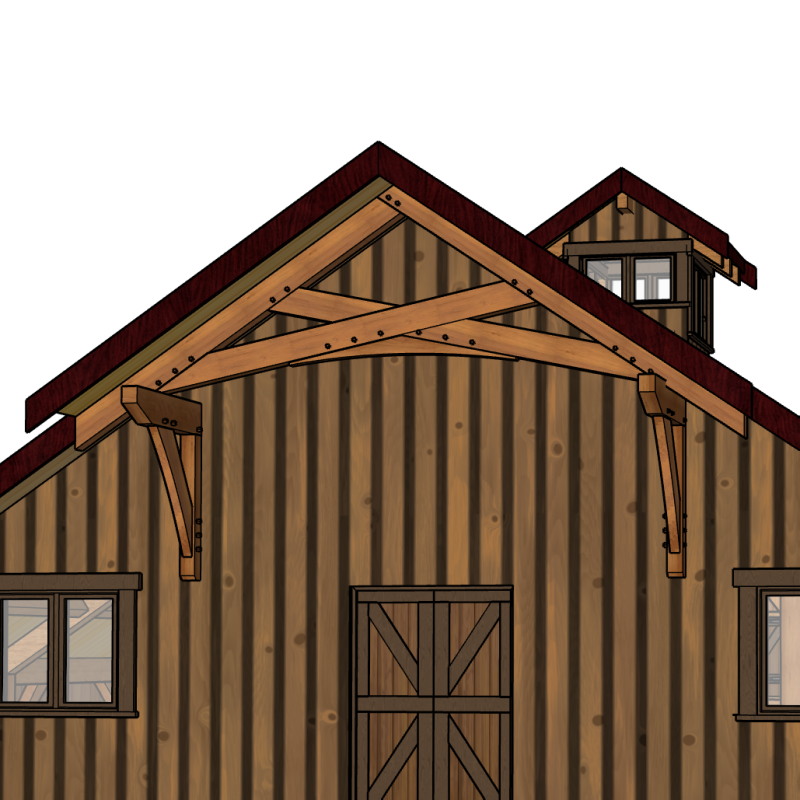

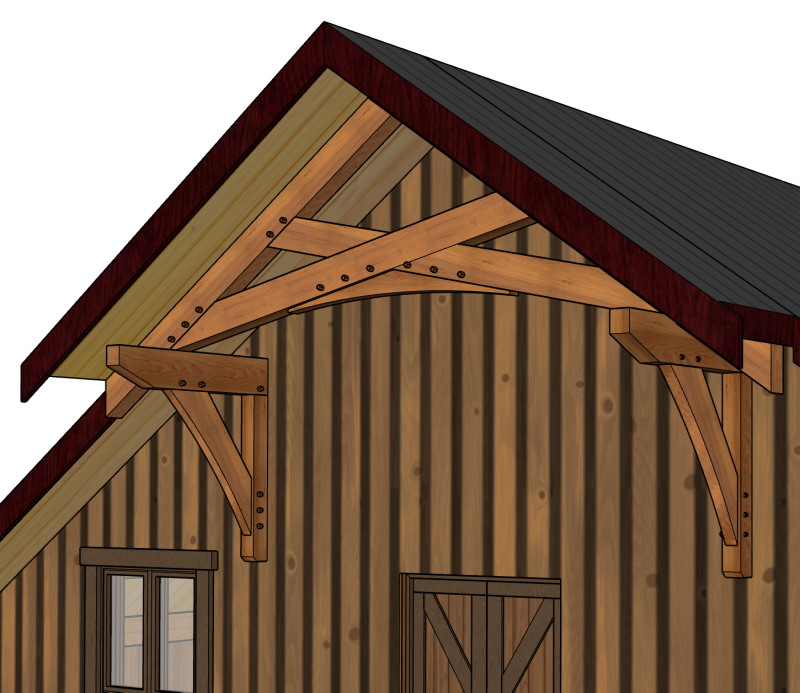

Timber Frame Gable Truss with Brackets
Enhance your home or building with our meticulously crafted Timber Frame Gable Truss with Brackets, which offers a blend of timeless character and structural beauty. This gable truss is intended to make a significant architectural impact, improving the aesthetics of facades and entrances while maintaining structural integrity.
| Weight | 1620 lbs |
|---|---|
| Wood Species | Spruce, Douglas Fir |
| Roof Slope | 8 / 12, 10 / 12, 12 / 12 |
